Cooling Fin

Part III

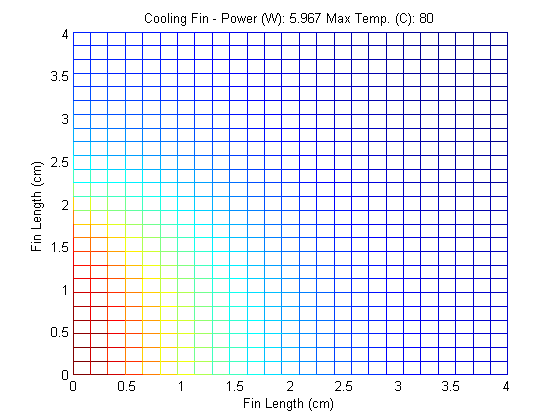

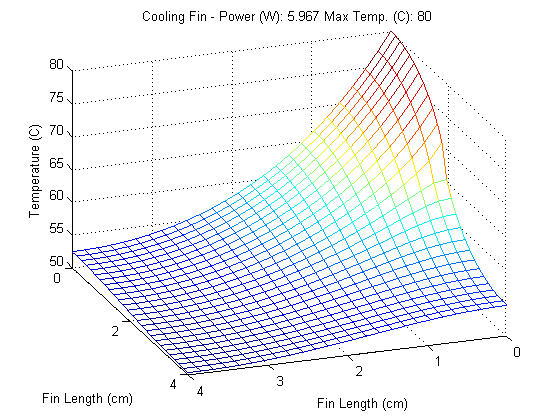

We were asked to determine the maximum power that can be dissipated by the 4 X 4 cm fin while keeping the temperature less than 80 C. Again the power input was kept along a length of 2 cm from [0, 2]. The maximum power was determined to be around 5.7 Watts.

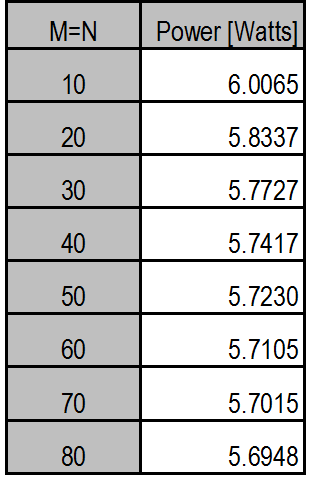

Table 3: Maximum Power for Different Step Sizes (@ Max Temp \(80^{\circ}C\))

Source code here
